Ambiance – LUXUS 40 Bay

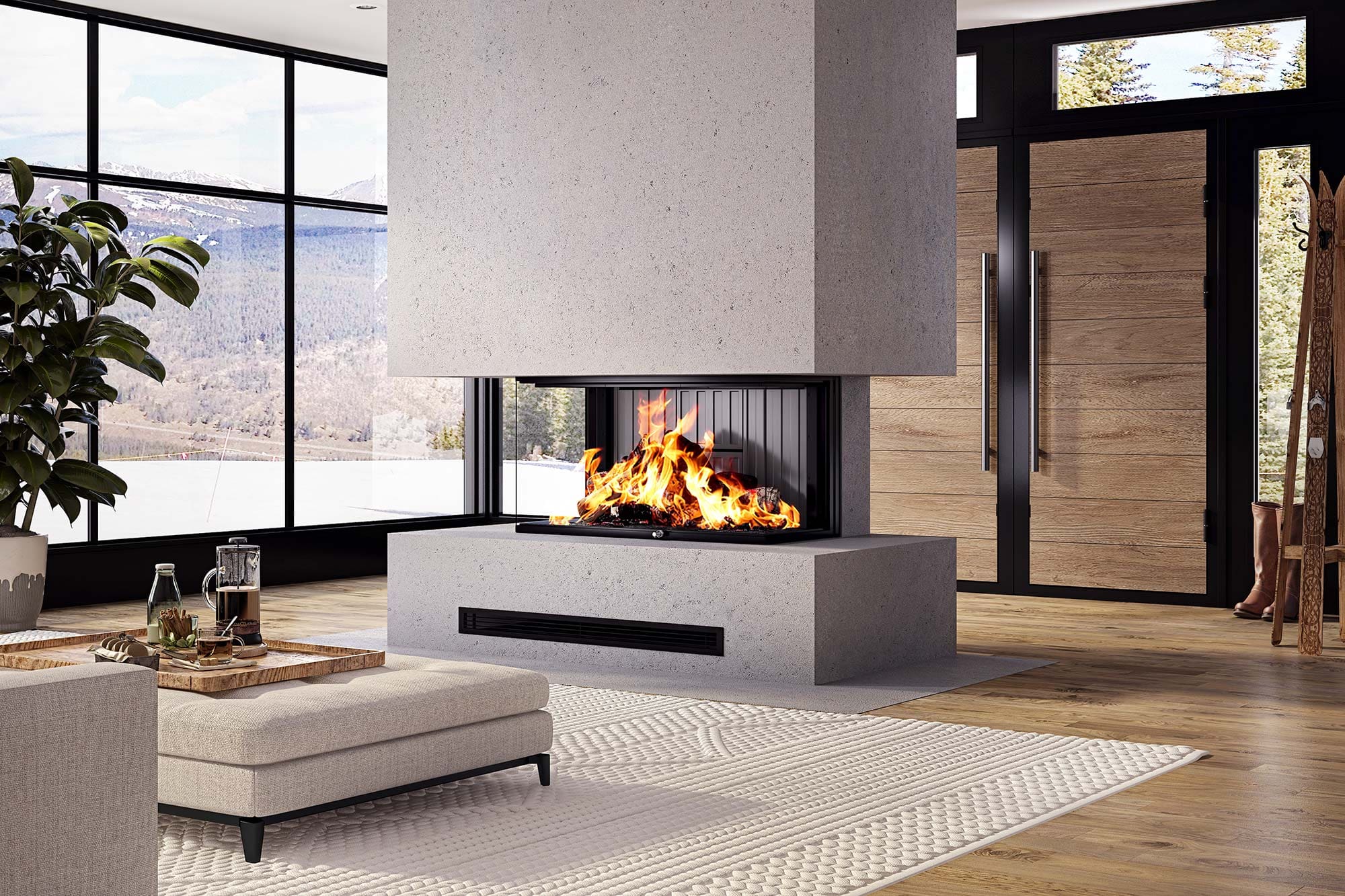

The LUXUS 40 Bay is going to transform your home and sooth the souls of all who are living there. Enjoy the flames from nearly anywhere in the room thanks to this “bay” configurated fireplace that presents the fascination of fire on three sides. A larger piece of glass in the front, with two smaller pieces on either side. With its BTU output of up to 49000 BTU, this luxurious decorative fireplace will warm up and charm everyone in the room.
Technical Details
|
Power
|
Cordwood Up To 49000 BTU |
EPA EPA Exempt |
||
|---|---|---|---|---|
|
Dimensions
|
Full Viewing Dimensions 46 7⁄8“W x 22 15⁄16“H x 21 5⁄8“D |
Overall 46 7⁄8“W x 67 1⁄8“H x 30 1⁄4“D |
Weight 662 lbs |
|
|
Guillotine Glass Door
|
Shape Bay |
Left / Right Pane 16 5⁄16“W x 19 5⁄8“H (320,13 sq.in.) |
Front Pane 39″W x 19 5⁄8“H (765,38 sq.in.) |
|
|
Firebox
|
Cubic Foot 5.88 Cu. Ft |
Log Length 20″ Logs |
Lining Chamotte |
|
|
Mantel Shelf Clearances
|
Combustible Mantel Shelf 6-inch Shelf: 19″ |
Ambiance® Non-Combustible Mantels No Clearance required |
||
|
Venting
|
TYPE Class A |
Diameter 10″ |
Min. / Max. Height 15 / 45 Feet |
Brands Selkirk, Security Chimneys, ICC RIS |
|
Air Circulation
|
Required Hot Air Gravity Kit |
See Something you like?
Visit our showroom and see our products in person!
Catalog Product Request Quote Form
Additional information
| Brand | Ambiance |
|---|---|
| Product Type | Fireplace |
| Fuel Type | Wood |
